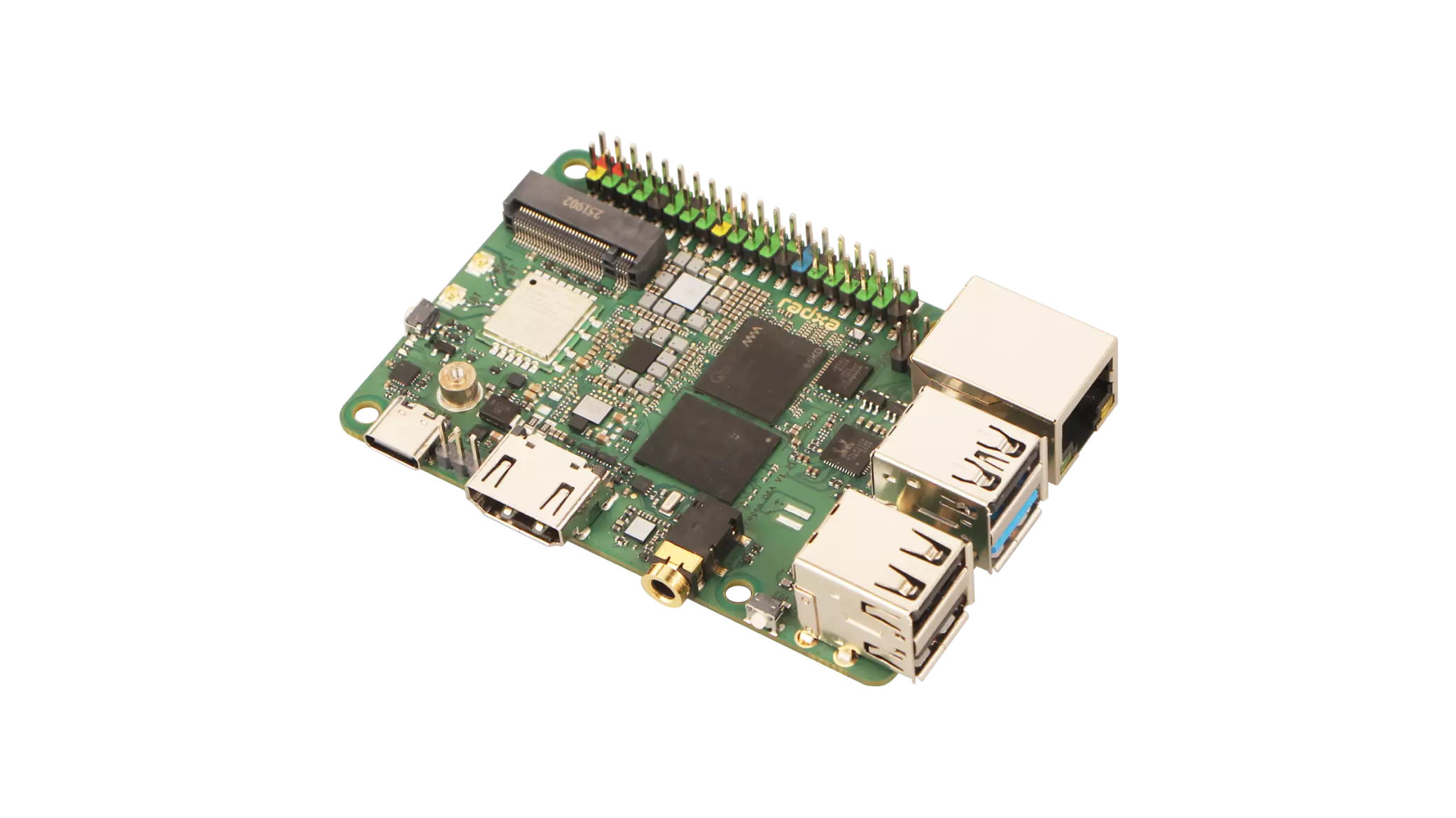

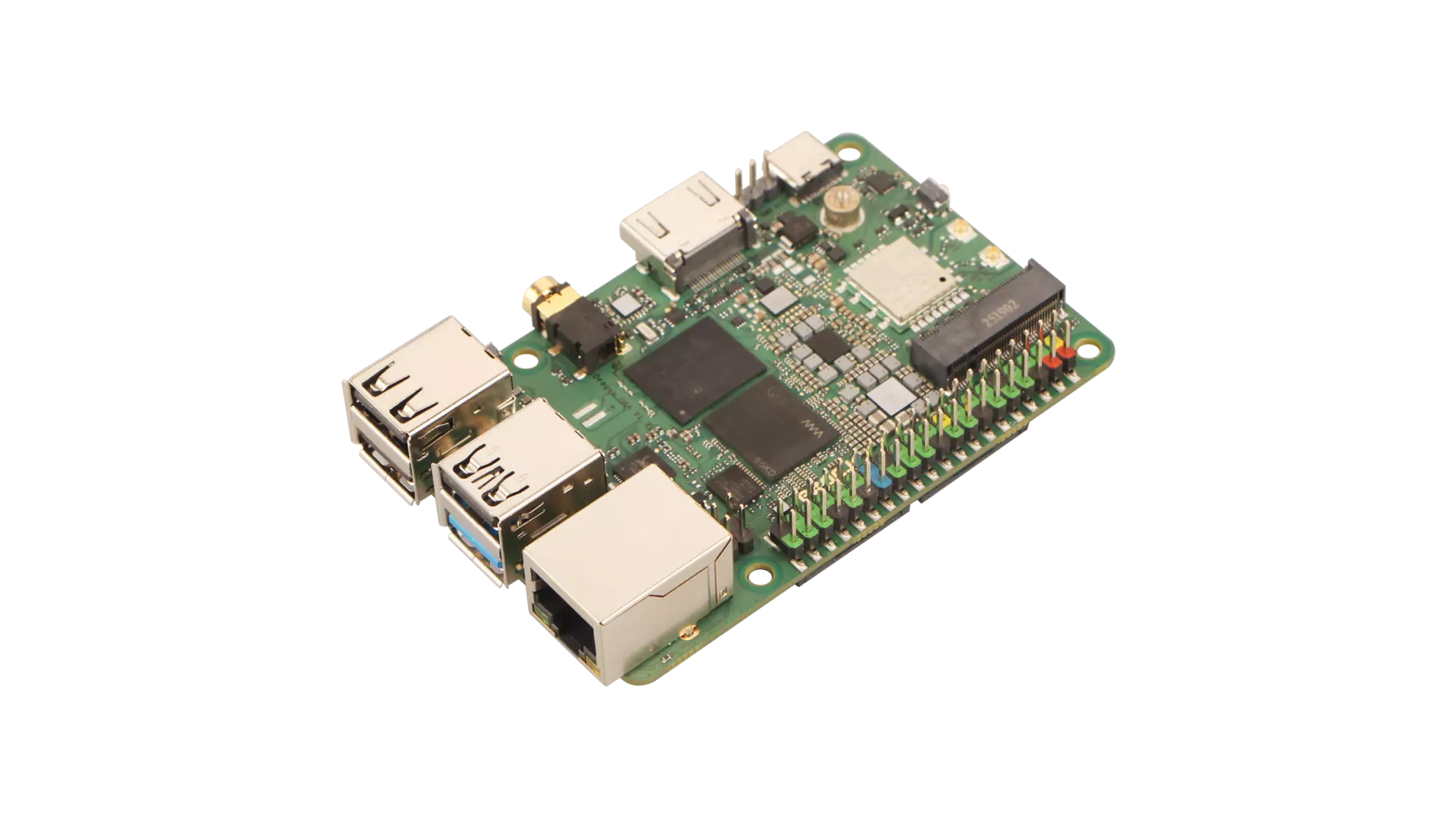

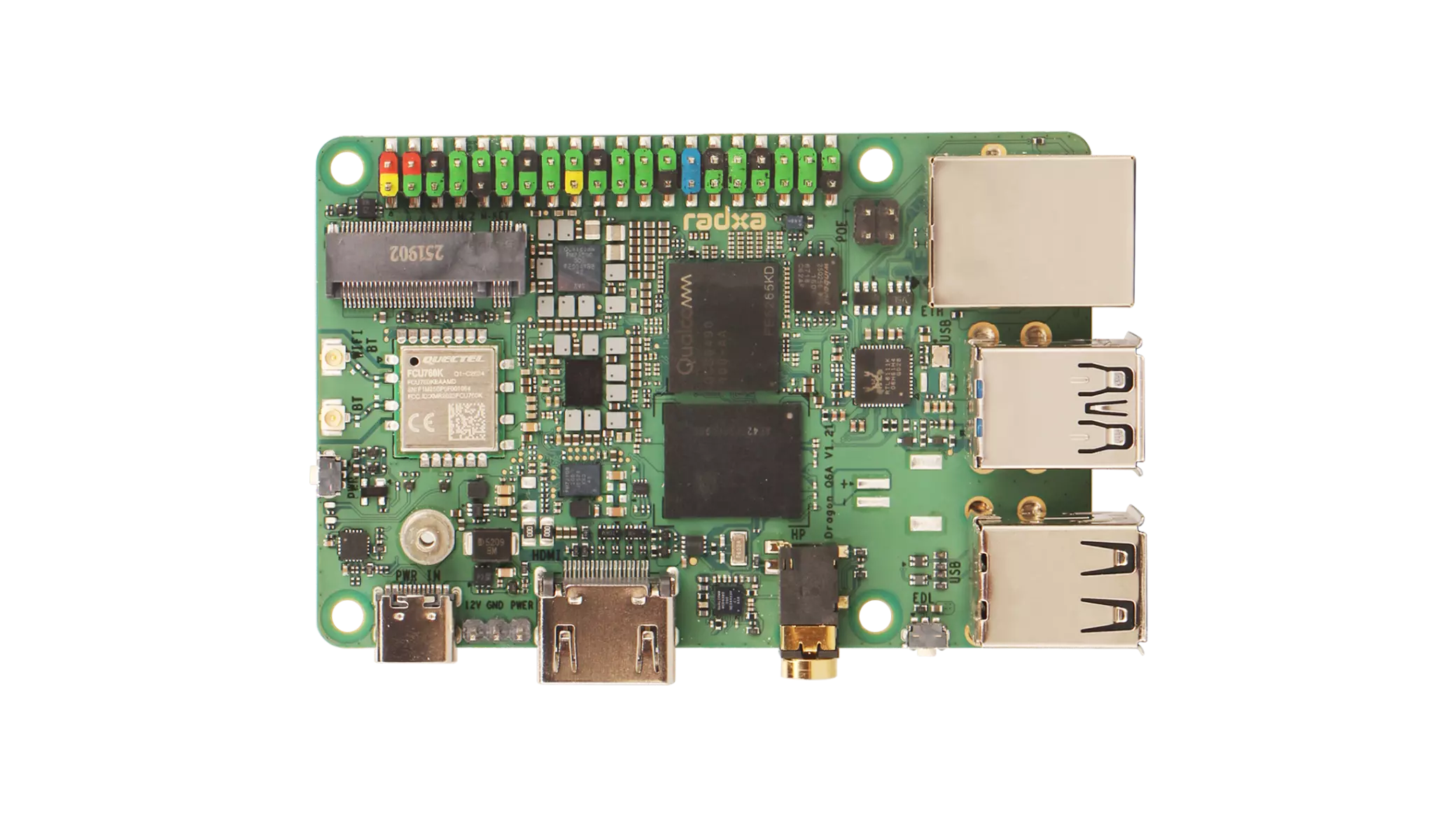

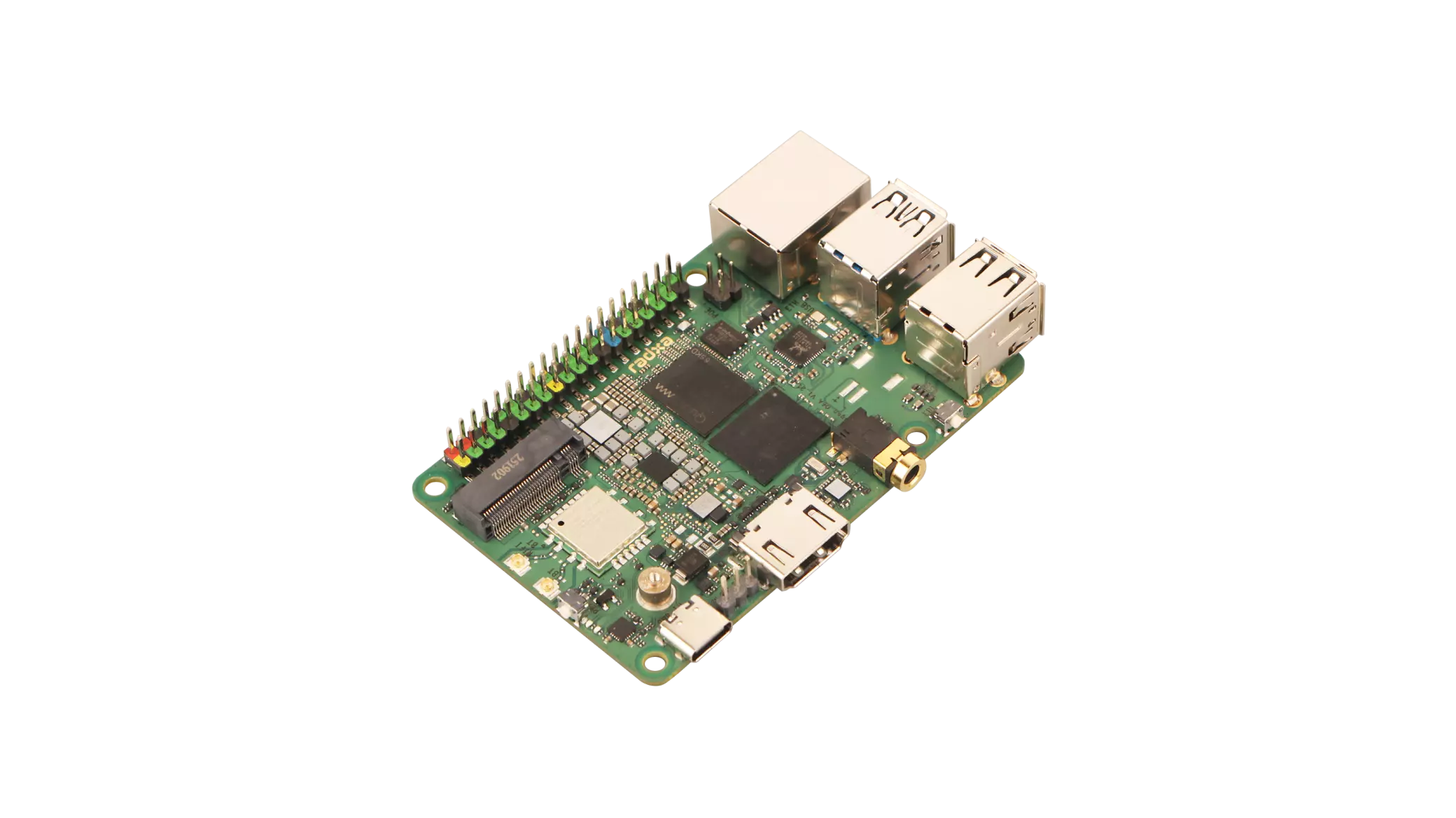

Radxa Dragon Q6A(12 TOPs)

Tech Specs

• SoC

  Qualcomm® QCS6490

• CPU

  1× Kryo Prime @ 2.7GHz

  3× Kryo Gold @ 2.4GHz

  4× Kryo Silver @ 1.9GHz

• GPU

  Qualcomm® Adreno 643

  – OpenGL® ES 3.2, 2.0, 1.1

  – Vulkan® 1.1 / 1.2 / 1.3

  – OpenCL™ 2.2

  – DirectX Feature Level 12

• AI

  Total AI compute performance: 12 TOPS

  Hexagon DSP with dual HVX

  Hexagon Tensor Accelerator

  Hexagon Coprocessor 2.0

• RAM

  4GB / 6GB / 8GB / 12GB / 16GB LPDDR5 @ 5500MT/s

• Storage

  SPI Flash (bootloader)

  eMMC Module: 16 / 32 / 64 GB

  UFS Module: 128 / 256 / 512 GB

  MicroSD card slot ×1

• Display

  HDMI 2.0: up to 4K@30Hz

  MIPI DSI: 1× 4-lane

• Camera

  MIPI CSI: 1× 4-lane (split to 2× 2-lane)

  MIPI CSI: 2× 2-lane

• Wireless

  Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

  Bluetooth® 5.4 with BLE

  Quectel FCU760K Module (AIC8800D80 chipset)

  2× external antenna connectors

• Ethernet

  1× Gigabit Ethernet with PoE support (via optional HAT)

• USB

  1× USB 3.1 Type-A OTG

  3x USB 2.0 Type-A HOST

  1× USB 2.0 Type-C Power

• Expansion

  M.2 M Key: PCIe Gen3 x2 (supports 2230 NVMe SSDs)

  Not compatible with SATA

  40-pin 2.54mm GPIO header

  – UART / I2C / SPI / GPIO / PWM

  – 2× 5V in/out, 2× 3.3V out

• Audio

  3.5mm audio jack

• Power

  12V via USB Type-C or Power input header

  Recommended: ≥18W light load, ≥24W full load

• Software

  Supports Radxa OS, Ubuntu Linux, Qualcomm Yocto Linux, Armbian, Arch, Deepin, Fedora, Windows

  Hardware control libraries available

• Dimensions

  85 mm x 56 mm
